IQDEMY MAGLEV KM - a powerful industrial manufacturing solution for your business. It unites the most reliable print head of KM and a unique innovative system of «magnetic levitation» embedded in the carriage motion system. Extreme speed printing at maximum capacity. The printer is made on the development facilities in Siberia and absorbed all our knowledge of print technologies accumulated for 18 years being in the market.




Additional usable functions

Additional usable functions

DPS Innovations system in MAGLEV

DPS Innovations system in MAGLEV

Smart constructions

Smart constructions

Reliable source & Ergonomic

Reliable source & Ergonomic

IQDEMY MAGLEV PRINTER

IQDEMY MAGLEV PRINTER

SAFE OPERATING

SAFE OPERATING

Printing on different medias

Printing on different medias

Samples

Samples

  • Print table 2,0m х 3,0m or 1,2х2,8
    Print heads and color scheme Up to 8 x Ricoh Generation 5
    CMYK + LcLm + WW with 4 printheads
    (CMYK + WW) x 2 with 6 printheads
    Five Konica Minolta 1024 printheads
    CMYK + W
    Number of UV-curing Units 2x UV-LED curing unit by DPS Innovations
    The company’s DPS Innovations ink curing units operate up to 10,000 hours and are ready to work immediately after printer starts.
    LED units 2 pcs of UV-LED units producted by DPS Innovations
    Unit size: Large; Wave length: 386nm.
    Resolution up to 1440dpi
    Drop size 3-35pl
    Maglev uses «Invisible dots»® technology by DPS Innovations, allowing to reduce drop size twice.
    Media thickness Up to 100 mm
    Media weight Up to 400Kg
    Possible media All rigid media (plastic, glass, wood, plexiglass, enamel, etc.)
    Reverse vacuum Yes, 4 zones
    Body paint Teflon
    Teflon coating printer body protects it from exposure to chemical irritants, mechanical damage, maintaining a quality look throughout the period of operation.
    Print speed
    Fast 55 sq.m/hour
    Express 71 sq.m/hour
    Production 39 sq.m/hour 30 sq.m/hour
    Top quality 23 sq.m/hour 18 sq.m/hour
    RIP Caldera RIP Caldera Grand RIP
    Interface: Jet Control Centre; Computer: Processor ≥ Intel Core i3, Running memory ≥ 3Gb, hard disk free volume 30Gb minimum
    Operating requirements:
    Power 16А, 380V ± 10%, not lower than 3kW
    Power consumption 6kW
    RH 40-60%
    Temperature °C 20-27 °C
    Air Ventilation, 4 volumes/hour, pressure not lower than 120 mlb
    Operating area At least 1 meter around the printer from each side
    Price For the best price find your dealer or contact managers
    Type of UV-curing Ink IQDEMY Da Vinci Ink KM UV-LED Ink
    Variable dot. Ink thermal stabilization. White ink circulation. 10 tanks for supplying ink and residue level sensors.
  • TECHNOLOGY

    gal Stone table
    The printer is equipped with a powerful linear motor with a maximum traction force equal to 21,500 joules, and is able to accelerate the carriage speed up to 500m/min in just 0.1 second by electromagnetic force giving the printing speed unbeatable by standard mechanic solutions. The absence of rubbing and stepping components eliminates the negative vibrations and «noise» affecting the print quality and raising overall stability and durability of the system. Magnetic Levitation Technology is ‘quantum leap’ in ink-jet multi-pass printing

    gal Advanced grey-scale (Ricoh Gen5 only)
    Improved waveform monitoring system allows IQ Maglev to print eight dots of different sizes in a single cycle. This option increases the smoothness of the color transition significantly, making gradients (like human skin and blue sky tones) look perfect without speed loss, further optimizing ink consumption.

    gal Two-colors in one print head (Ricoh Gen5 only)
    Ricoh Gen5 print heads have two independent channels to supply ink to 640 nozzles from each channel. As a result, you can print CMYK using only two print heads in a true 300 dpi. Advanced control electronics allows use up to 8 print heads for maximum print speed in wide color range.

    gal The minimum droplet size is about 3.5 pl (+/- 10%) (Ricoh Gen5 only)
    The combination of Variable Dot® technology and Technology of Invisible Dots® by DPS Innovations enables to half the minimum droplet size to get the sharpest image.

    gal White ink recirculation
    Constant circulation system allows forgetting ‘white’ print head clogging issue.

    gal 8 channels in every machine
    Every Maglev is ready for 8 colors printing, get CMYK+W and then just add print heads to have +LM+LC+V when needed.

    gal Control electronics by DPS Innovations
    All control systems and side components are developed and produced by DPS innovations specifically for IQDEMY Maglev. Get maximum of print head capabilities and forget about banding.



    CONSTRUCTION AND COMPONENTS

    gal Solid metal frame
    All-metal welded frame can withstand any heavy media. The body is equipped with wheels and legs for easy movement and a stable fixation in operation.

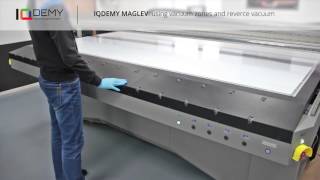

    gal 4 vacuum zones
    Honeycomb desktop is divided into 6 vacuum zones operated independently to reduce power consumption of the printer. Composite panel coating is perforated to ensure continuous vacuum supply. The coating is fixed by magnets and is easy to replace.

    gal I-beam and guide-frames
    The carriage motion system includes specialized guides, mounted on an aluminum I-beam. Step- motor with leadscrew provides automatic adjustment of the carriage height making your work a lot easier.

    gal 10 tanks for ink supplying and ink level sensors
    The ink delivery system consists of 10 tanks (8 for colors and 2 for air). Each container includes a mechanical sensor measuring the level of a residue, pre-filter, cleaning system of electronic valves, and diaphragm pump for pumping ink into system, fine filter and ink supplying path. Vacuum systems for CMYK and White color are independent. This is most reliable scheme in industrial ink-jet printing for now.

  •

  • Print table 2,0m х 3,0m or 1,2х2,8
    Print heads and color scheme Up to 8 x Ricoh Generation 5
    CMYK + LcLm + WW with 4 printheads
    (CMYK + WW) x 2 with 6 printheads
    Five Konica Minolta 1024 printheads
    CMYK + W
    Number of UV-curing Units 2x UV-LED curing unit by DPS Innovations
    The company’s DPS Innovations ink curing units operate up to 10,000 hours and are ready to work immediately after printer starts.
    LED units 2 pcs of UV-LED units producted by DPS Innovations
    Unit size: Large; Wave length: 386nm.
    Resolution up to 1440dpi
    Drop size 3-35pl
    Maglev uses «Invisible dots»® technology by DPS Innovations, allowing to reduce drop size twice.
    Media thickness Up to 100 mm
    Media weight Up to 400Kg
    Possible media All rigid media (plastic, glass, wood, plexiglass, enamel, etc.)
    Reverse vacuum Yes, 4 zones
    Body paint Teflon
    Teflon coating printer body protects it from exposure to chemical irritants, mechanical damage, maintaining a quality look throughout the period of operation.
    Print speed
    Fast 55 sq.m/hour
    Express 71 sq.m/hour
    Production 39 sq.m/hour 30 sq.m/hour
    Top quality 23 sq.m/hour 18 sq.m/hour
    RIP Caldera RIP Caldera Grand RIP
    Interface: Jet Control Centre; Computer: Processor ≥ Intel Core i3, Running memory ≥ 3Gb, hard disk free volume 30Gb minimum
    Operating requirements:
    Power 16А, 380V ± 10%, not lower than 3kW
    Power consumption 6kW
    RH 40-60%
    Temperature °C 20-27 °C
    Air Ventilation, 4 volumes/hour, pressure not lower than 120 mlb
    Operating area At least 1 meter around the printer from each side
    Price For the best price find your dealer or contact managers
    Type of UV-curing Ink IQDEMY Da Vinci Ink KM UV-LED Ink
    Variable dot. Ink thermal stabilization. White ink circulation. 10 tanks for supplying ink and residue level sensors.
  • TECHNOLOGY

    gal Stone table
    The printer is equipped with a powerful linear motor with a maximum traction force equal to 21,500 joules, and is able to accelerate the carriage speed up to 500m/min in just 0.1 second by electromagnetic force giving the printing speed unbeatable by standard mechanic solutions. The absence of rubbing and stepping components eliminates the negative vibrations and «noise» affecting the print quality and raising overall stability and durability of the system. Magnetic Levitation Technology is ‘quantum leap’ in ink-jet multi-pass printing

    gal Advanced grey-scale (Ricoh Gen5 only)
    Improved waveform monitoring system allows IQ Maglev to print eight dots of different sizes in a single cycle. This option increases the smoothness of the color transition significantly, making gradients (like human skin and blue sky tones) look perfect without speed loss, further optimizing ink consumption.

    gal Two-colors in one print head (Ricoh Gen5 only)
    Ricoh Gen5 print heads have two independent channels to supply ink to 640 nozzles from each channel. As a result, you can print CMYK using only two print heads in a true 300 dpi. Advanced control electronics allows use up to 8 print heads for maximum print speed in wide color range.

    gal The minimum droplet size is about 3.5 pl (+/- 10%) (Ricoh Gen5 only)
    The combination of Variable Dot® technology and Technology of Invisible Dots® by DPS Innovations enables to half the minimum droplet size to get the sharpest image.

    gal White ink recirculation
    Constant circulation system allows forgetting ‘white’ print head clogging issue.

    gal 8 channels in every machine
    Every Maglev is ready for 8 colors printing, get CMYK+W and then just add print heads to have +LM+LC+V when needed.

    gal Control electronics by DPS Innovations
    All control systems and side components are developed and produced by DPS innovations specifically for IQDEMY Maglev. Get maximum of print head capabilities and forget about banding.



    CONSTRUCTION AND COMPONENTS

    gal Solid metal frame
    All-metal welded frame can withstand any heavy media. The body is equipped with wheels and legs for easy movement and a stable fixation in operation.

    gal 4 vacuum zones
    Honeycomb desktop is divided into 6 vacuum zones operated independently to reduce power consumption of the printer. Composite panel coating is perforated to ensure continuous vacuum supply. The coating is fixed by magnets and is easy to replace.

    gal I-beam and guide-frames
    The carriage motion system includes specialized guides, mounted on an aluminum I-beam. Step- motor with leadscrew provides automatic adjustment of the carriage height making your work a lot easier.

    gal 10 tanks for ink supplying and ink level sensors
    The ink delivery system consists of 10 tanks (8 for colors and 2 for air). Each container includes a mechanical sensor measuring the level of a residue, pre-filter, cleaning system of electronic valves, and diaphragm pump for pumping ink into system, fine filter and ink supplying path. Vacuum systems for CMYK and White color are independent. This is most reliable scheme in industrial ink-jet printing for now.
